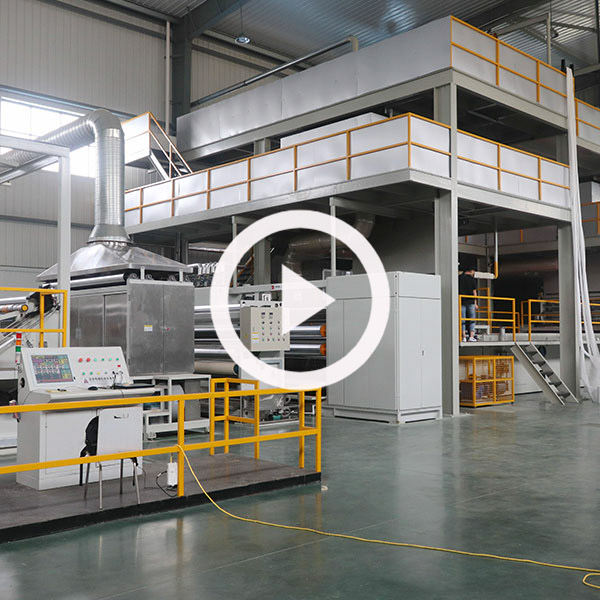

Nonwoven SS machine

Voltage:

380V

Power(W):

315-630KW

Main motor brand:

SIEMENS

Frequency Converter:

SIEMENS,ABB,FUJI

Machine Speed:

10-350m/min

Effective width:

1600mm,2400mm,3200mm

Dimension(L*W*H):

35M*20M*12M

Raw material:

PP Chips

Final products:

Non Woven Fabric

Filament denier:

1.8-2.3denier

Machine Color:

Cool Gray 3C

Supply Ability:

4 Sets per Month

Packaging Details:

wooden box package

Port:

Shanghai

Place of Origin:

Zhejiang, China

Condition:

New

Automatic Grade:

Automatic

Brand Name:

HH Nonwovens Machinery

Certification:

CE,ISO

Weight:

120-150ton

Warranty:

1 Year

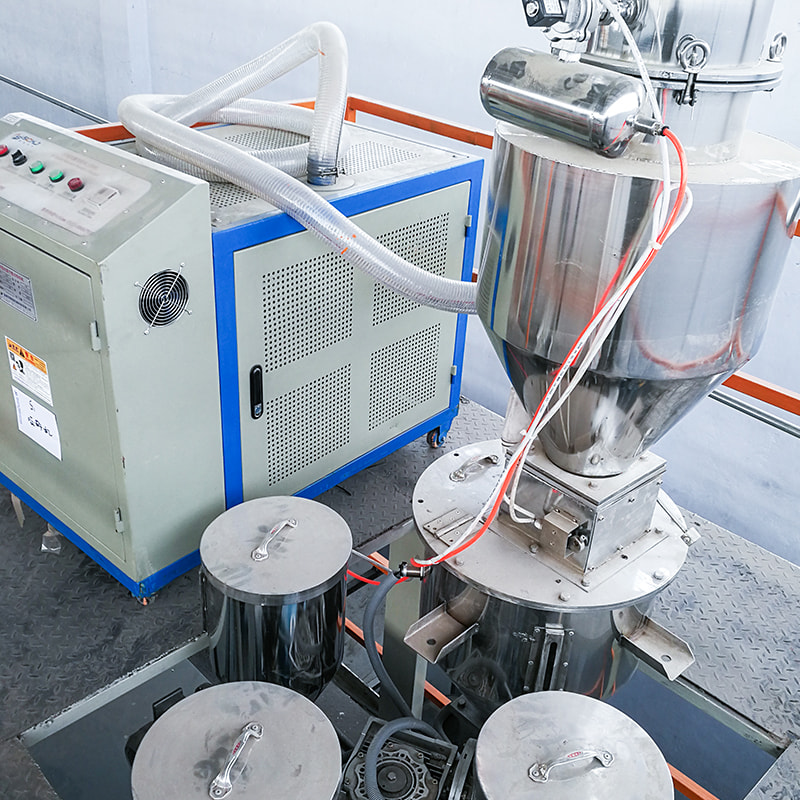

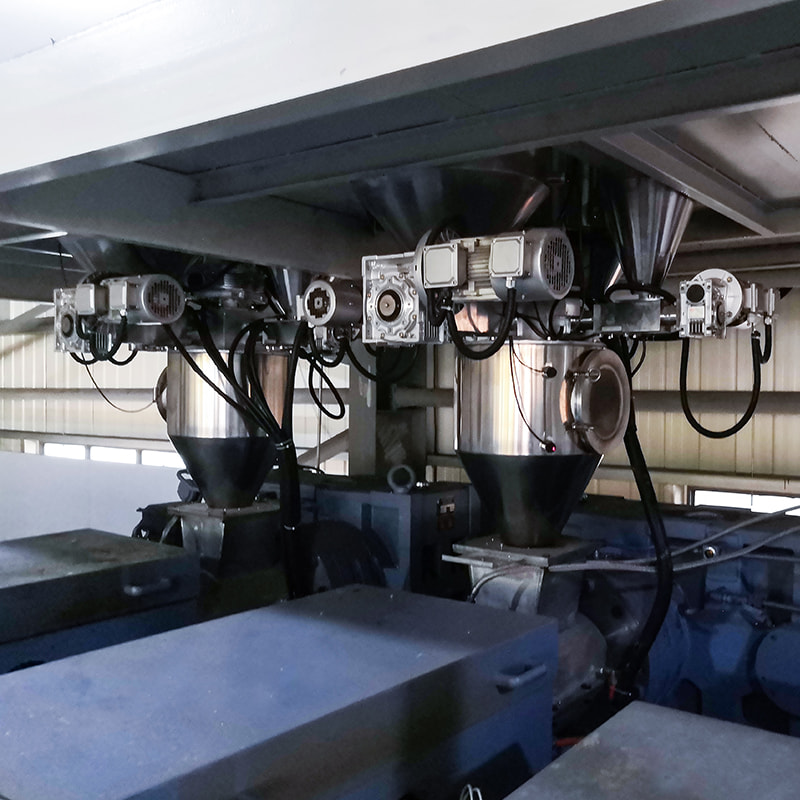

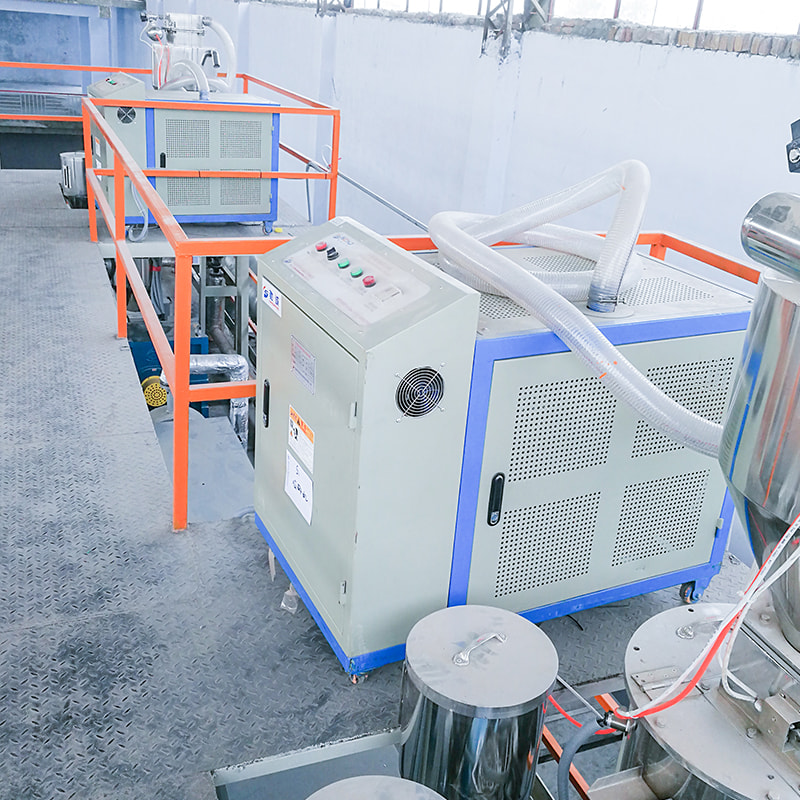

Name: Vacuum feeder and dosing system

Brand: HH SS type
Original: China
Inhale PP material from stock bin to the hopper. then mix PP, and additives as color master batch,antioxidant,fire retardant with certain ratio

Name: Recycle Extruder

Brand: HH SS type
Original: China
Recycle fabric offcut and pass it to main extruder

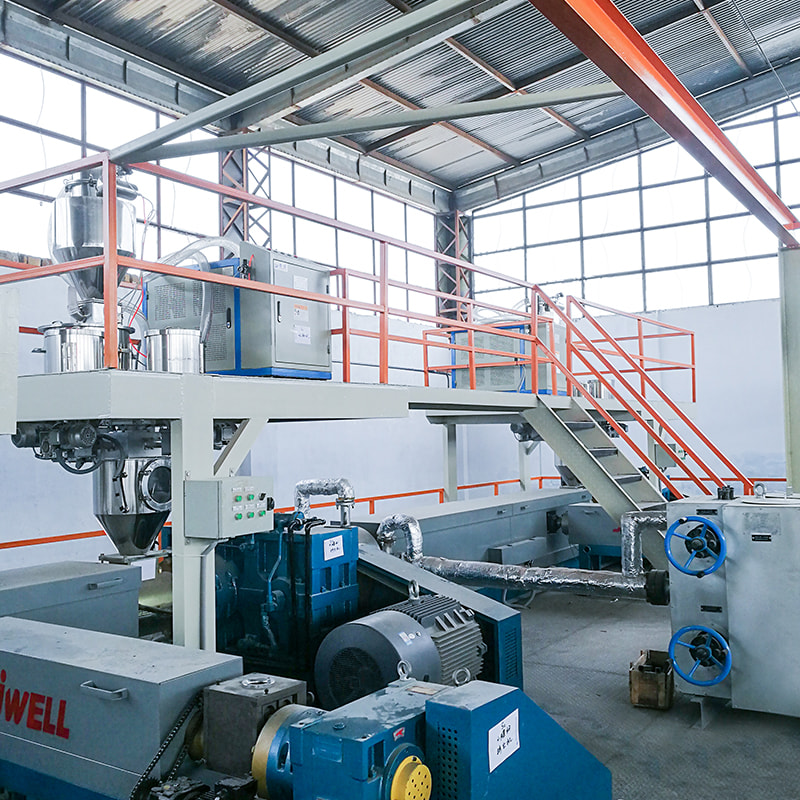

Name: Main Extruder

Brand: HH SS type
Original: China
Squeeze and melt PP, and additives as color master batch,antioxidant,fire retardant .

Name: Filter

Brand: HH SS type
Original: China
Get away impurity from pp material fusant.And the filter can change the filter screen without stopping the machine.

Name: Metering pump

Brand: HH SS type
Original: China
Offer stable pressure to the pp material and press material to the spinning box.

Name:Spinning box

Brand: HH SS type
Original: China
The PP fusant go through filter,fusant pipe,and metering pump transport the fusant into spinning container and fiber comes out from spinneret.

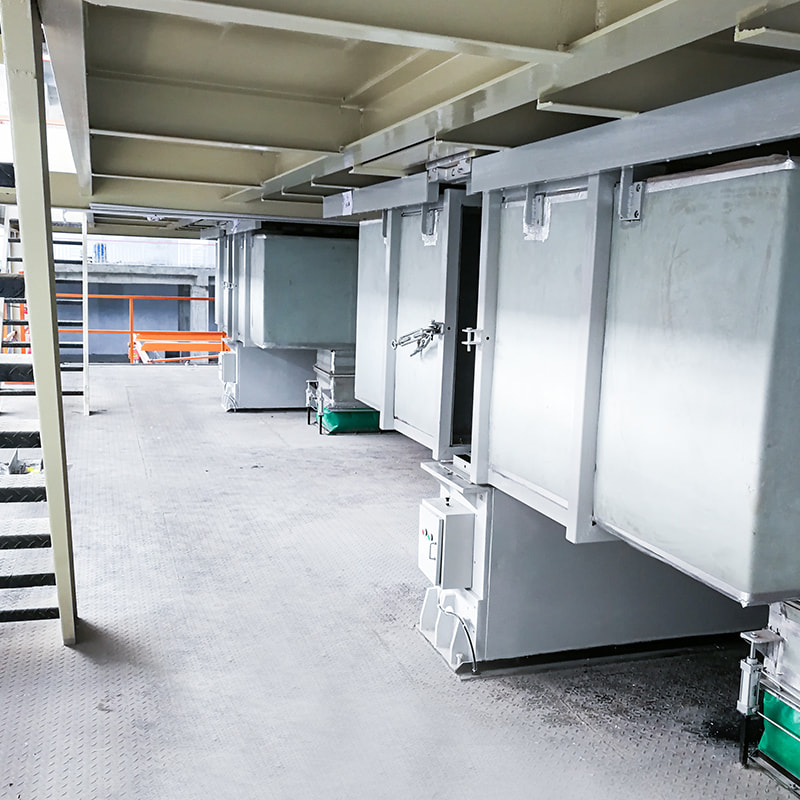

Name: Stretching machine

Brand: HH SS type
Original: China
The distance of the two mirror inside the up stretching machine can be adjusted.
Everyone machine from HH has a logo on the down stretcher.

Name: Web former machine

Brand: HH SS type
Original: China
Web adjusting system use motor to control.

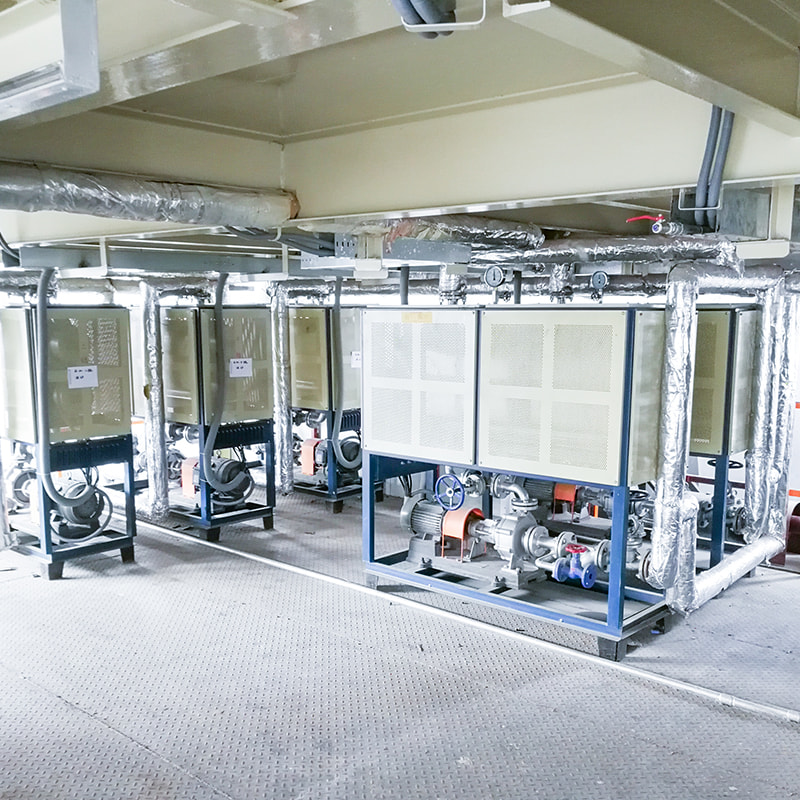

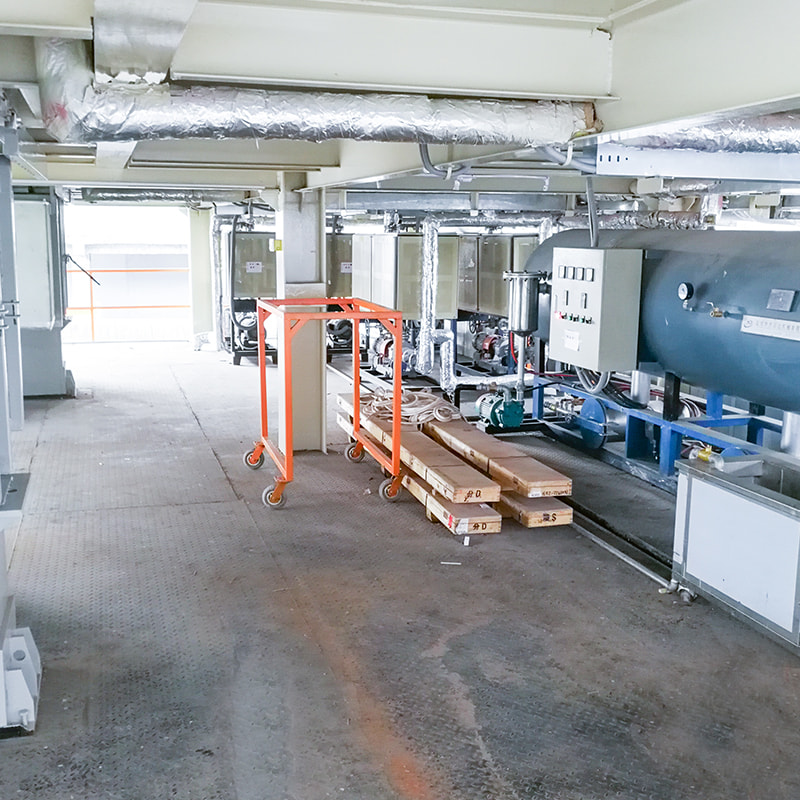

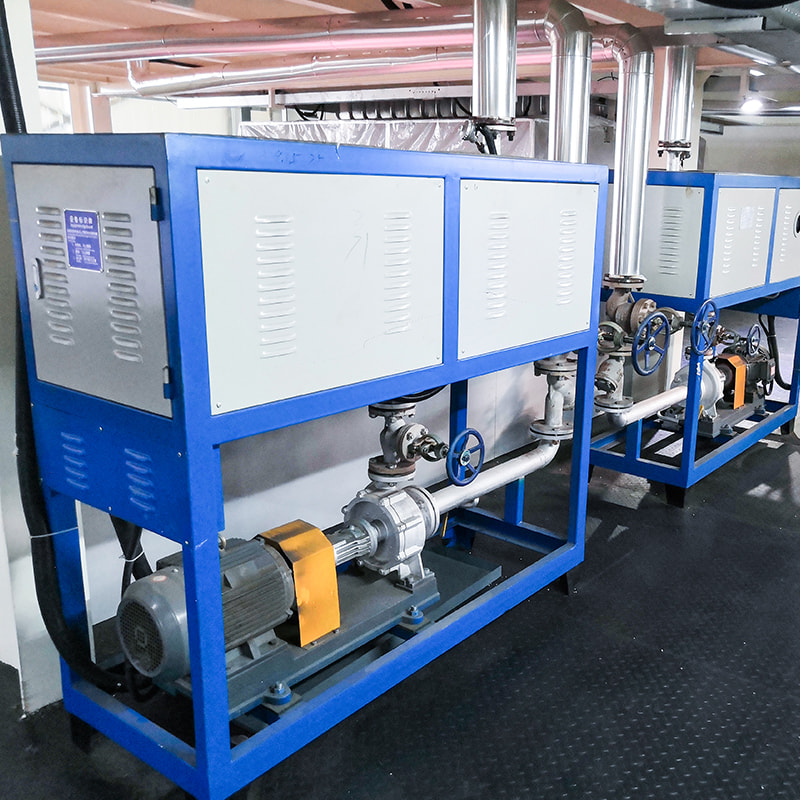

Pre-roller use oil heating rather than electrical heating rod.
Use special design on the air passage of web former machine.

Name: Calender

Brand: HH SS type
Original: China
Normally have two rollers,up roller is embossing roller,down roller is mirror roller.They press and heat the fiber from web former and make these fiber to be fabric.

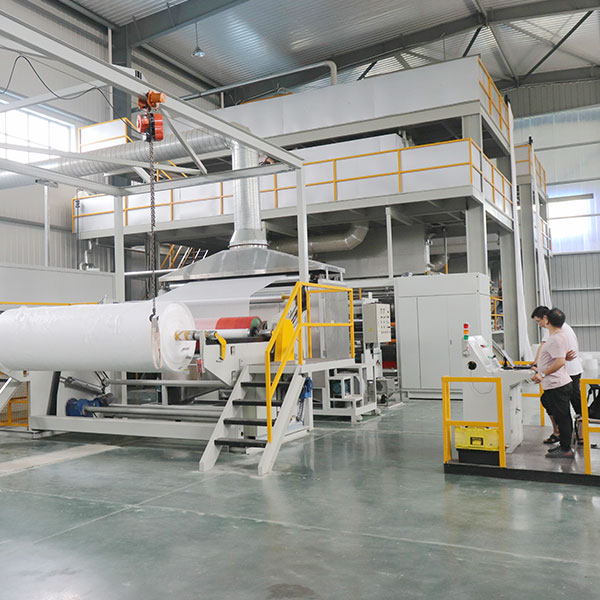

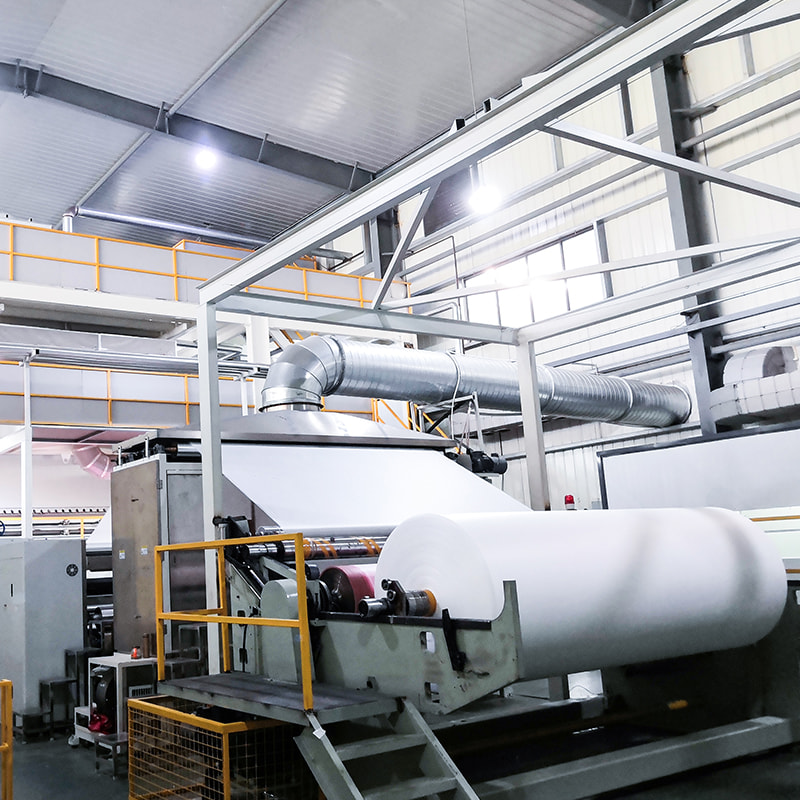

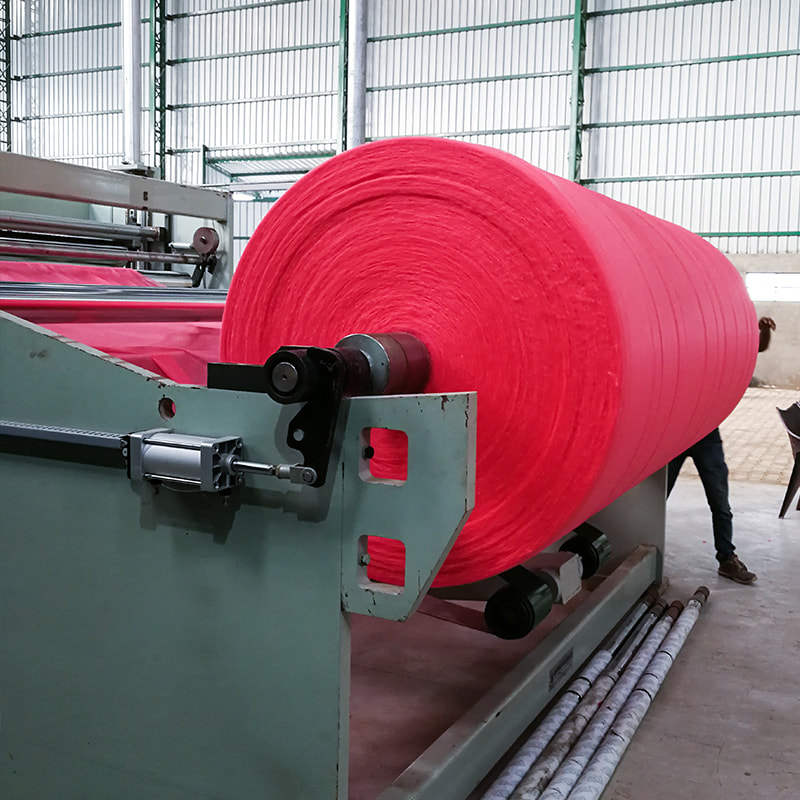

Name: Winder

Brand:HH SS type
Original: China
Use air shaft winding fabric from calender and when reaching certain number been set in system.Winder can change the fabric roller automatically.

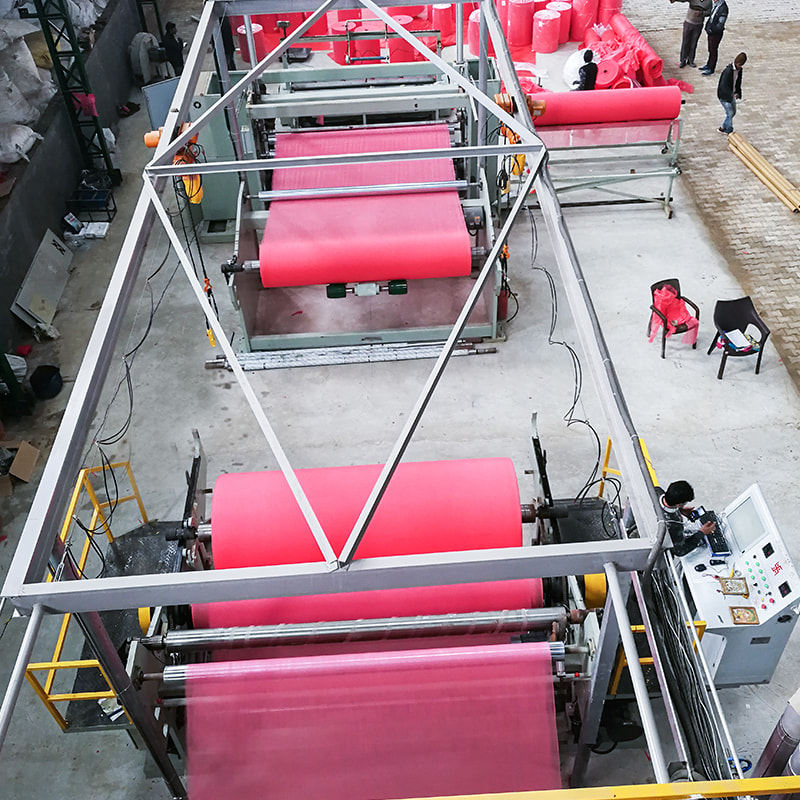

Name: Slitter

Brand: HH SS type
Original: China
Slitter have the unwinding and rewinding parts,the knives on the slitter can cut the fabric into certain width according to customers’ requirement.
