Modol:

SMMSS machine

Supply Ability:4 SETS/month

Port:Shanghai

Payment Terms:TT.LC,others

Application of the PP spunbond nonwoven fabric machine

PP spunbond nonwoven fabric machine is used to produce pp spunbond nonwoven fabric.With slitter in our machine,the fabric can be cut into any width to fit different requirement.Machine running speed is 10-350m/min,filament denier:1.8-2.3denier

Use CNC to produce main parts of the pp spunbond nonwoven machine.Machine roller use dynamic balance machine to produce the rollers so as to make machine running in high speed.Main motors use Siemens motor,and use Siemens or ABB driver to control the whole machine.

After-sales Service Provided:

Video technical support, Online support, Field installation, commissioning and training, Engineers available to service machinery overseas

Contact Us Download Pdf

Video technical support

Contact us to send the installation video
Install Service

commissioning and training, Engineers available to service machinery overseas
Online support

Online video experienced staff and experts are at your service to provide you with satisfactory products and professional guidance to solve technical problems

Main Parameter
Product Description
Design Diagram

Voltage:	380V	Power(W):	1600-3300KW
Main motor brand:	SIEMENS	Frequency Converter:	SIEMENS,ABB,FUJI
Machine Speed:	10-500m/min	Effective width:	1600mm,2400mm,3200mm
Dimension(LWH):	50M28M12M	Raw material:	PP Chips
Final products:	Non Woven Fabric	Filament denier:	1.8-2.3denier
MELTBLOWN Filament denier:	1.6~4μm	MFI 25-40 FOR SPUNBOND	MFI 800~1600 FOR MEL TBLOWN
Machine Color:	Cool Gray 3C	Supply Ability:	4 Sets per Month
Packaging Details:	wooden box package	Port:	Shanghai
Place of Origin:	Zhejiang, China	Condition:	New
Automatic Grade:	Automatic	Brand Name:	HH Nonwovens Machinery
Certification:	CE,ISO	Weight:	160-190ton
Warranty:	1 Year

Nonwoven hygiene products

Baby and adult diapers: Top sheets, back sheets, ears, tapes, landing zone

Female hygiene: Top sheets, wings

Cleaning wipes: Baby care, cosmetics, etc.

Nonwoven medical products

Surgeon's masks,Disposable garments,Surgical drapes,Shoe covers

Nonwoven furniture products

Beds: Pocket springs, mattresses, cushions, bed covers, disposal bedding

Seating:Upholstered backs,sub-paneling, intermediate layers, etc.

Nonwoven technical products

Geotextiles: Erosion protection, filtration, reinforcement, drainage, separation layers, embankment fortification etc. for streets, dikes, and farms

Structural engineering: Bitumen supports, roof insulation sheeting, diaphragms

Agriculture: Crop forcing nonwovens, insect protection, etc.

Automotive: Inner paneling, sound insulation, insulation, etc.

Nonwoven packaging products

Shopping bags,Rice packaging,Tea bags ,Clothes packaging

SMMSS fabric

Nonwoven hygiene products

Baby and adult diapers

Nonwoven medical products

Surgeon's masks,Surgical drapes,Combinations with other nonwovens,Paper composites

Work protection

Protective clothing,Breathing masks

Melt blown fabric

Sanitary products

Baby and child hygiene, Female hygiene,Incontinence products,Pads,Absorbing pads

Functional inserts for controlled absorption

Absorbents

Absorbent cloths and wiping cloths, Media for oil absorption,Liquids (benzene, water, blood)

Filtration

Gas,Air,Liquids (benzene, water, blood)

Product Application

1.Material:PP chip
2.Weight range:10-100g/m²
3.Fabric usage:Medical applicant,shopping bag,packing,operation suit,face mask,baby diaper.etc

A.General information for SMMSS nonwoven plant

Model	HHM-1.6SMMSS	HHM-2.4SMMSS	HHM-3.2SMMSS	HHM-4.0SMMSS	HHM-4.8SMMSS
Effective Width	1.6M	2.4M	3.2M	4.0M	4.8M
Weight Range	10-100G/M2	10-100G/M2	10-100G/M2	10-100G/M2	10-100G/M2
Output per Day	10-14Ton	15-21Ton	20-28Ton	25-35Ton	30-42Ton
Machine Speed	≦500m/min	≦500m/min	≦500m/min	≦500m/min	≦500m/min
Transformer Capacity	≈1600KVA	≈2000KVA	≈2500KVA	≈3150KVA	≈3300KVA
Power Consumption	1400˚-2000˚/Ton	1400˚-2000˚/Ton	1400˚-2000˚/Ton	1400˚-2000˚/Ton	1400˚-2000˚/Ton
Machine Size(LWH)	50M18M12M	50M22M12M	50M25M12M	50M28M12M	50M31M12M

B.Parts of spunbonded nonwoven fabric production line:
Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter

C.Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->Web forming---->Calendering---->Winding----> Cutting---->Final product

D.Parts of Melt blown nonwoven fabric production line:
Main extruder---->Filter---->Metering pump---->Air heating system---->Melt blown sprayer(ENKA sprayer)---->Web former---->Winder---->Slitter

E.Melt blown process and technical flow chart:
Raw material----> Melting---->Filtering---->Measuring ---->Air heating---->Spraying---->Web forming---->Winding----> Cutting---->Final product


Name: Vacuum feeder and dosing system Brand: HH SMMS type Original: China Inhale PP material from stock bin to the hopper. then mix PP, and additives as color master batch,antioxidant,fire retardant with certain ratio	Name: Recycle Extruder Brand: HH SMMS type Original: China Recycle fabric offcut and pass it to main extruder	Name: Main Extruder Brand: HH SMMS type Original: China Squeeze and melt PP, and additives as color master batch,antioxidant,fire retardant.	Name: Filter Brand: HH SMMS type Original: China Get away impurity from pp material fusant.And the filter can change the filter screen without stopping the machine.

Name: Metering pump Brand: HH SMMS type Original: China Offer stable pressure to the pp material and press material to the spinning box.	Name:Spinning box Brand: HH SMMS type Original: China The PP fusant go through filter,fusant pipe,and metering pump transport the fusant into spinning container and fiber comes out from spinneret.	Name:Air heating system Brand:HH SMMS type Original: China Air heating system offer high pressure and high temperature air to the melt blown spinning box	Name: Stretching machine Brand: HH SMMS type Original: China The distance of the two mirror inside the up stretching machine can be adjusted. Everyone machine from HH has a logo on the down stretcher.

Name:Melt blown spinning box Brand: ENKA/KASEN Original: Germany/Japan The PP fusant go through filter,fusant pipe,and metering pump transport the fusant into melt blown spinning box and short fiber spray to web conveyor belt or to spunbond fabric.	Name: Web former machine Brand: HH SMMS type Original: China Web adjusting system use motor to control. Pre-roller use oil heating rather than electrical heating rod. Use special design on the air passage of web former machine.	Name: Calender Brand: HH SMMS type Original: China Normally have two rollers,up roller is embossing roller,down roller is mirror roller.They press and heat the fiber from web former and make these fiber to be fabric.	Name: Winder Brand:HH SMMS type Original: China Use air shaft winding fabric from calender and when reaching certain number been set in system.Winder can change the fabric roller automatically.
	Name: Slitter Brand: HH SMMS type Original: China Slitter have the unwinding and rewinding parts,the knives on the slitter can cut the fabric into certain width according to customers’ requirement.

JIASHAN HH Nonwovens Machinery CO., Ltd is China Five beam (SMMSS) Spun-Melt nonwoven machine Manufacturers and OEM Five beam (SMMSS) Spun-Melt nonwoven machine factory. With the stable quality and easy operation of the nonwoven production line, our regular product includes single beam, double beam, SSS, SMS, SMMS, SSMMS and etc., regular width is 1600mm, 2400mm, 3200mm,4000mm,4200mm; Our wholesale Five beam (SMMSS) Spun-Melt nonwoven machine has passed IS09001 quality system management certification, The whole line is highly automated. The whole line is well-structured and easy to operate. Control elements are of well-known make, high performance, and reliable technologies. The whole line is controlled by PLC and operated with a touch-screen. The allocation of the mainframe and auxiliary equipment can be specially designed and adjusted according to customers' requirements.

Product Category:

Five beam (SMMSS) Spun-Melt nonwoven machine

Product:

Modol:

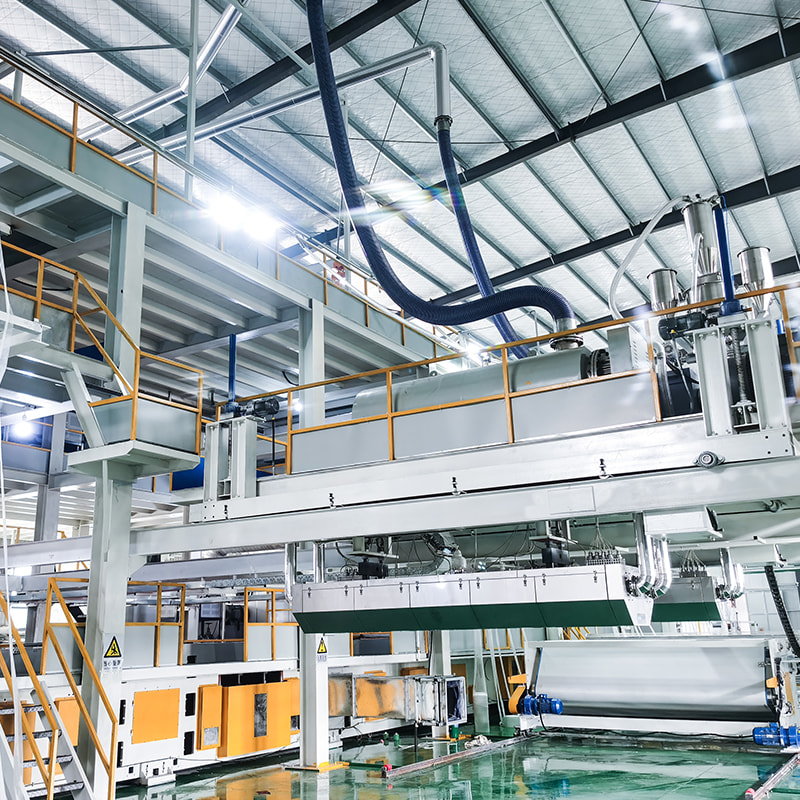

SMMSS nonwoven fabric making plant
Modol:

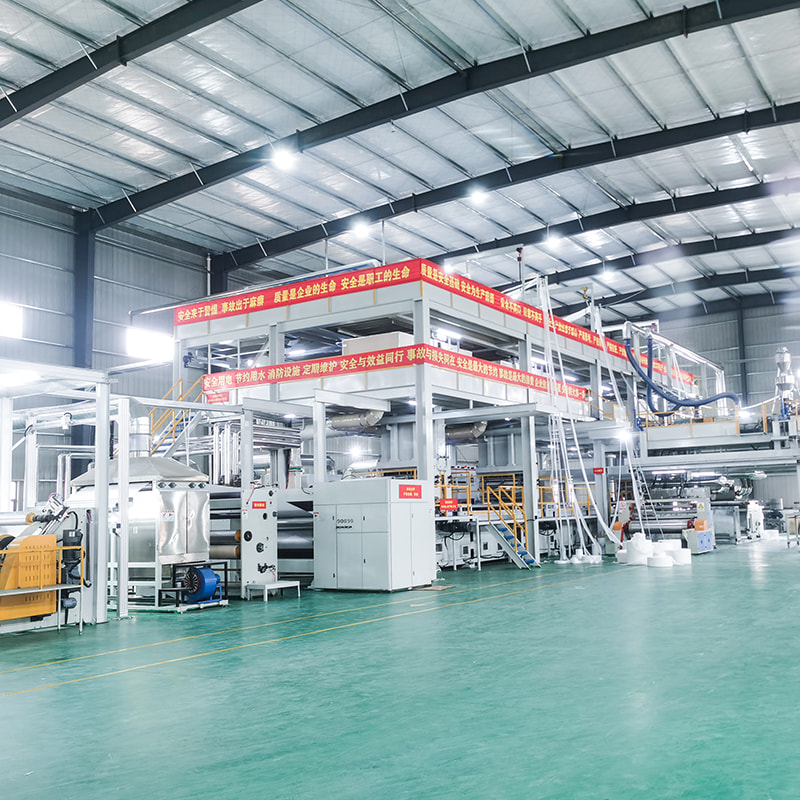

SMMSS fabric making plant
Modol:

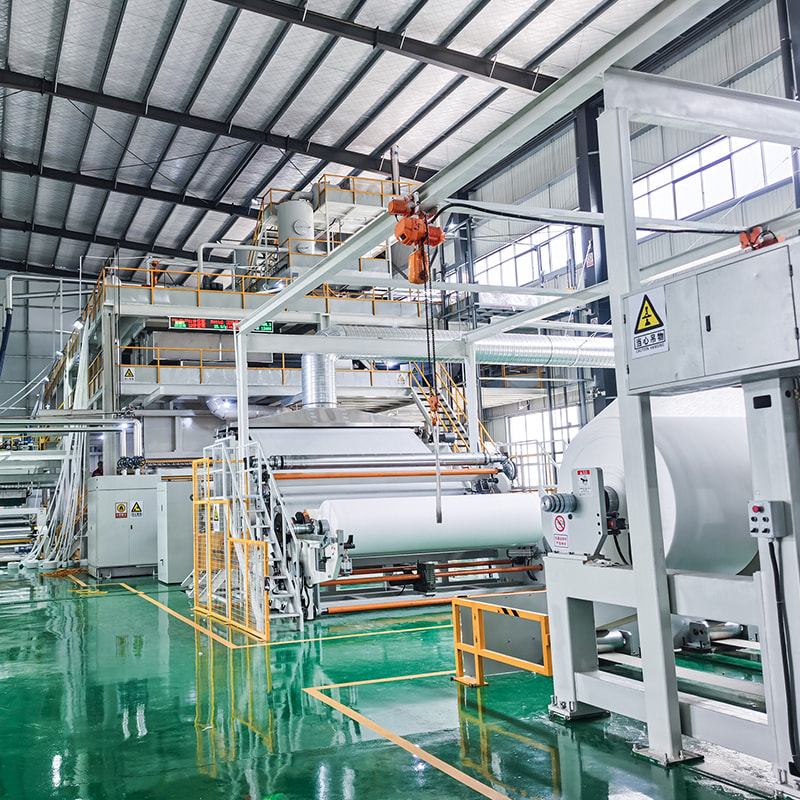

SMMSS nonwoven making machine
Modol:

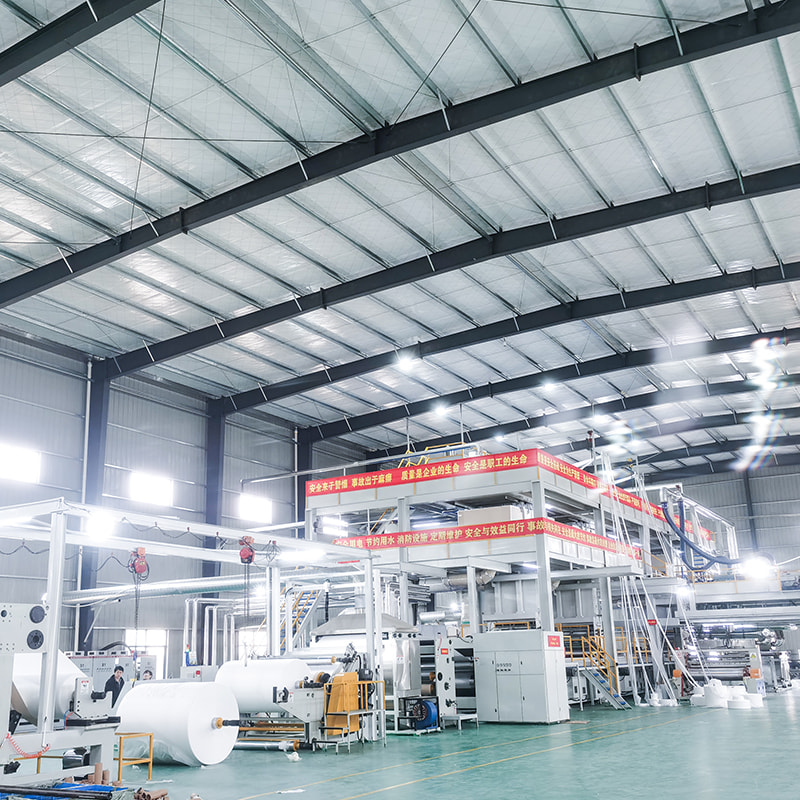

SMMSS fabric producing machine
Modol:
SMMSS fabric manufacture machine
Modol:

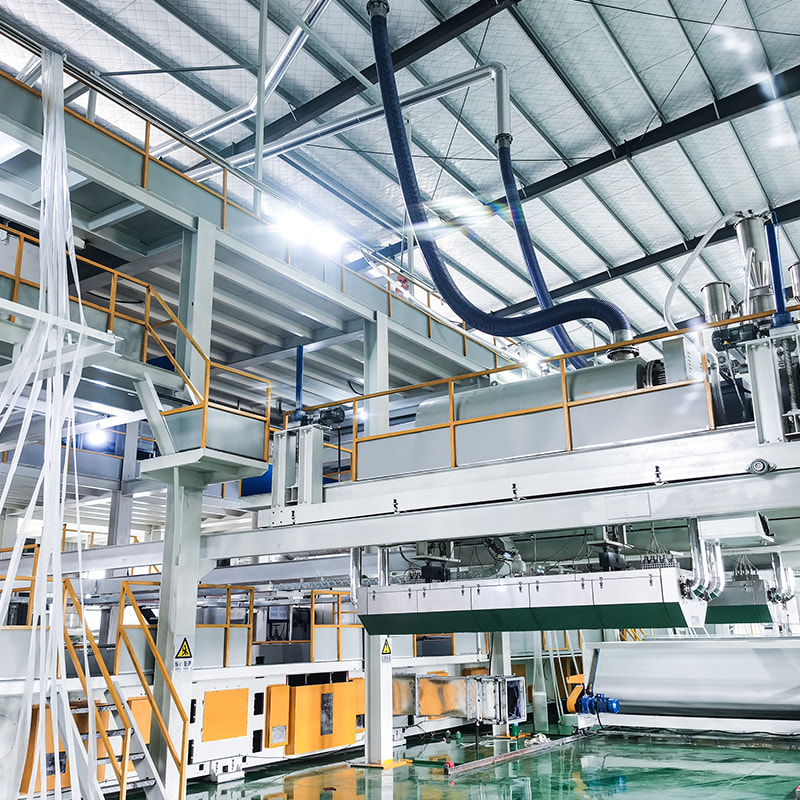

SMMSS composite fabric machine

19 Jun, 2025

The Role of Automation and Industry 4.0 in Enhancing Nonwoven Fabric Manufacturing with SMMSS Machines

As the manufacturing landscape continues to evolve, automation and smart technol...
13 Jun, 2025

How Filament Denier Influences Fabric Quality and Application in Spunbond Nonwoven Machines

In the world of nonwoven production, filament denier plays a crucial role in det...
06 Jun, 2025

How Dynamic Balancing of Rollers in SMMS Fabric Making Machines Ensures High-Speed Stability and Superior Fabric Quality

In the competitive world of nonwoven fabric production, every detail counts when...
26 May, 2025

The Role of Nonwoven Fabrics in the Medical and Hygiene Industries: Leveraging Nonwoven SS Machines for Quality Production

Nonwoven fabrics have become an essential part of the medical and hygiene indust...
23 May, 2025

Optimizing Production Efficiency with Nonwoven SS Machines: Balancing Speed, Labor, and Output

When it comes to nonwoven fabric production, achieving the right balance between...
16 May, 2025

Why Choosing Polypropylene Granule Fiber Grade with MFI 30-40 is Essential for Optimal Performance in Spunbond Nonwoven Machine Production

When it comes to producing high-quality nonwoven fabrics, the raw material selec...

How is the slitting process integrated into the machine to achieve different fabric widths?
The slitting process is a crucial element in the functionality of the Five Beam SMMSS Spunmelt Nonwoven Machine, allowing for the production of nonwoven fabric with different widths to meet diverse requirements. This integration is essential for versatility in applications, as various industries demand specific fabric dimensions.

1. Precision Engineering:The slitting mechanism is intricately engineered within the machine to ensure precision in fabric cutting. High-quality components and CNC-produced parts contribute to the accuracy and reliability of the slitting process.

2. Adjustable Slitting Mechanism:The machine incorporates an adjustable slitting mechanism that enables operators to set and modify the desired fabric width. This flexibility caters to the varying needs of different industries, allowing for customization without the need for extensive machine reconfiguration.

3. Real-time Control:The slitting process is seamlessly integrated into the overall control system of the Five Beam SMMSS Spunmelt Nonwoven Machine. This allows for real-time adjustments during production, ensuring that the fabric width can be modified efficiently without disrupting the manufacturing process. Siemens or ABB drivers are often employed to facilitate precise control.

4. In-line Slitting:The slitting process is typically performed in-line with the production, meaning that it occurs as part of the continuous manufacturing process. This in-line slitting capability enhances efficiency, reduces downtime, and optimizes the overall production workflow.

5. Dynamic Balancing for High-Speed Operation:To accommodate the high running speed of the machine (which can range from 10 to 350 meters per minute), the slitting components, including rollers, undergo dynamic balancing. This ensures stability and accuracy even at elevated production speeds.
